Description

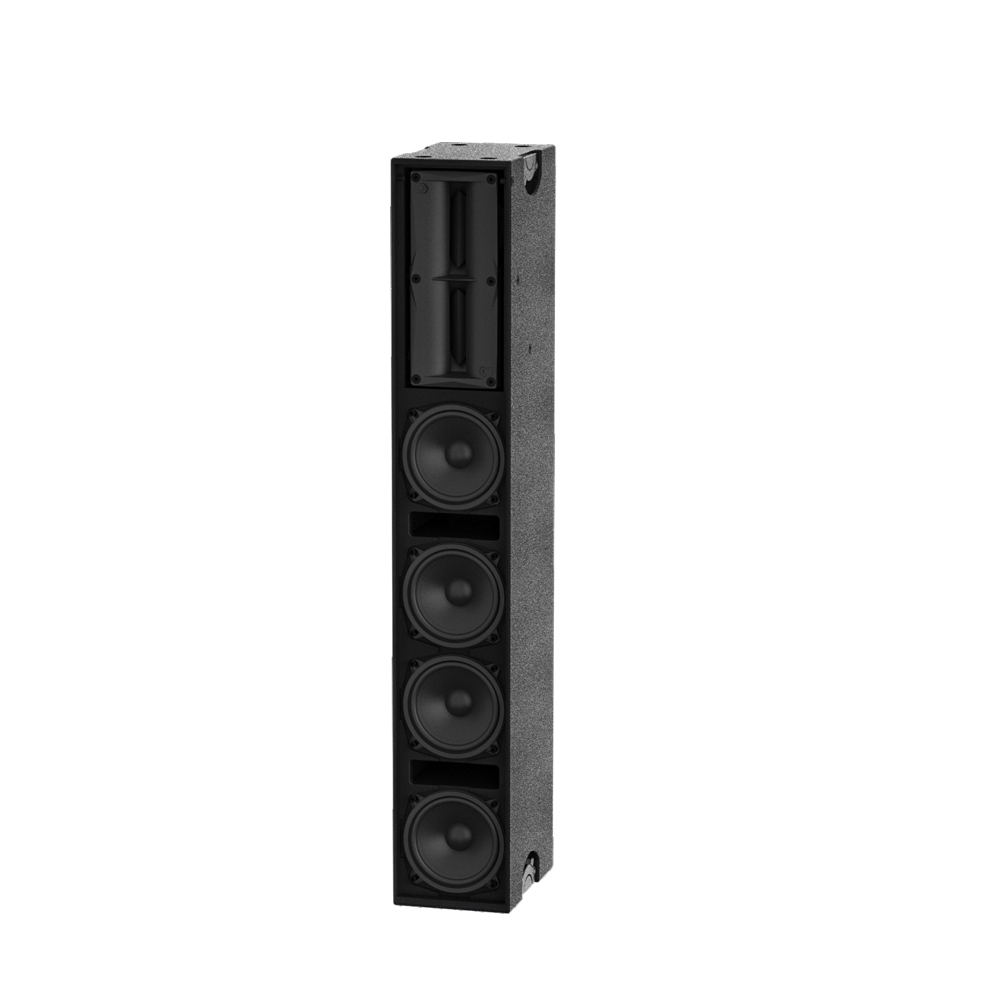

4x 5″Line Array Column Speaker
Drivers LF: 4x 5″ (127 mm)Neodymium woofer
HF: 2x 1.4″(36mm)Tweeter
Rated Power 300W(AES)
Frequency Response(-3dB) 110Hz-20kHz
Maximun SPL(Continuous) 129dB
Sensitivity(1W/1m) 98dB
Nominal Impedance 80
Coverage Angle(HxV) 130°x 20°(Adjustable 0 to -5°)
Connectors 2x Speakon NL4
Mounting Accessories 4x Fixed buckle accessories
Enclosure Color Black
Dimensions (mm) 147x 919x 218(WxHxD)
Net Weight (kg) 16.516.5

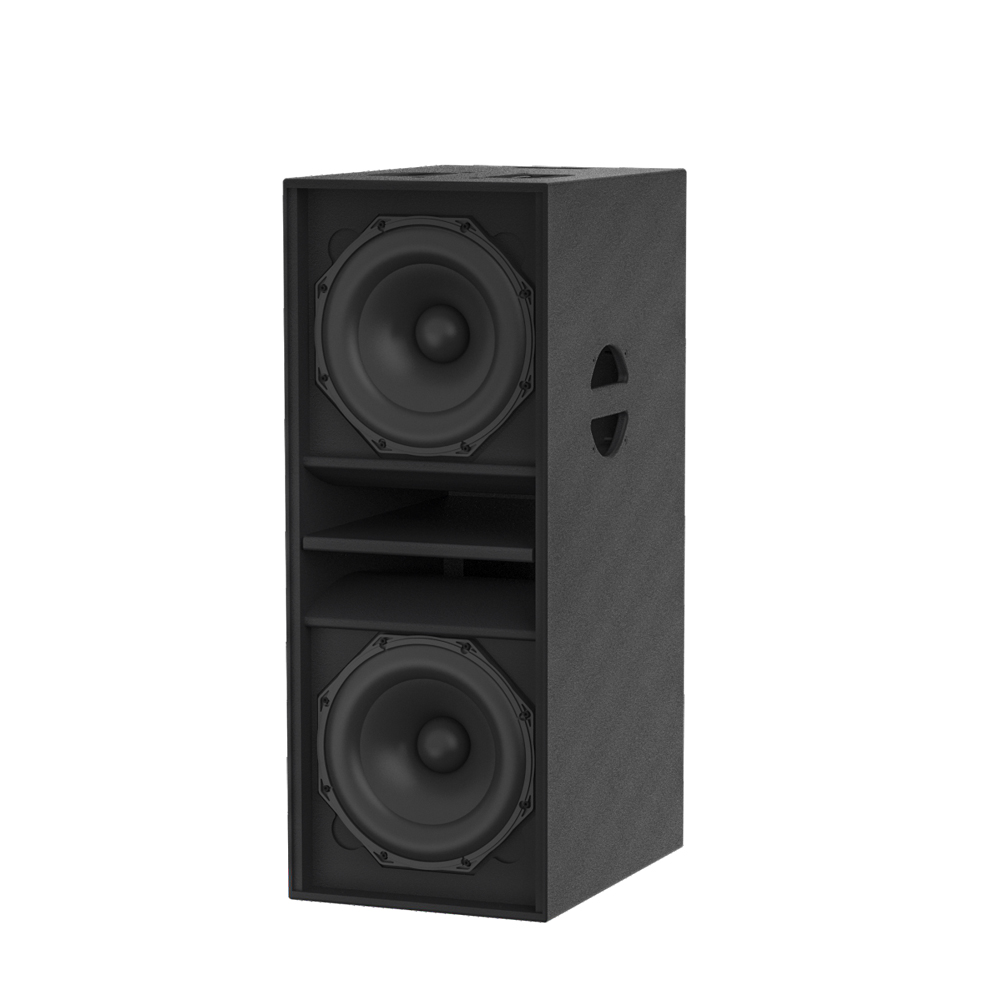

2 x 12″‘Active Woofer
Rated Power(EIAJTHD 2x1200W@80
1%, 1KHZ) 2x1800W@40
DSP 48kHz Sampling Rate/USB/2xRS485/8xPEQ/Hi-shelf/Lo w-shelf/
each channel/Buterworth/Basel/Linkwitz-Riley
Crossover/Input Delay:170ms/Output Delay:200ms
Input connectors 2x XLR Female
Link Output connectors 2x XLR Male
RMS Voltage(THD=1%, 89V@80 1kHz)
THD+N(10%Rated Power) < 1%
IMD-SMPTE(10%Rated Power < 1%
CROSSTALK → 60dB
Frequency Response (O. 20Hz-20kHz5dB)
S/N Ratio(20Hz-20kHz) > 95dB(A-weighted)
Working Voltage 198v – 242v AC(50/60hz)
