Description

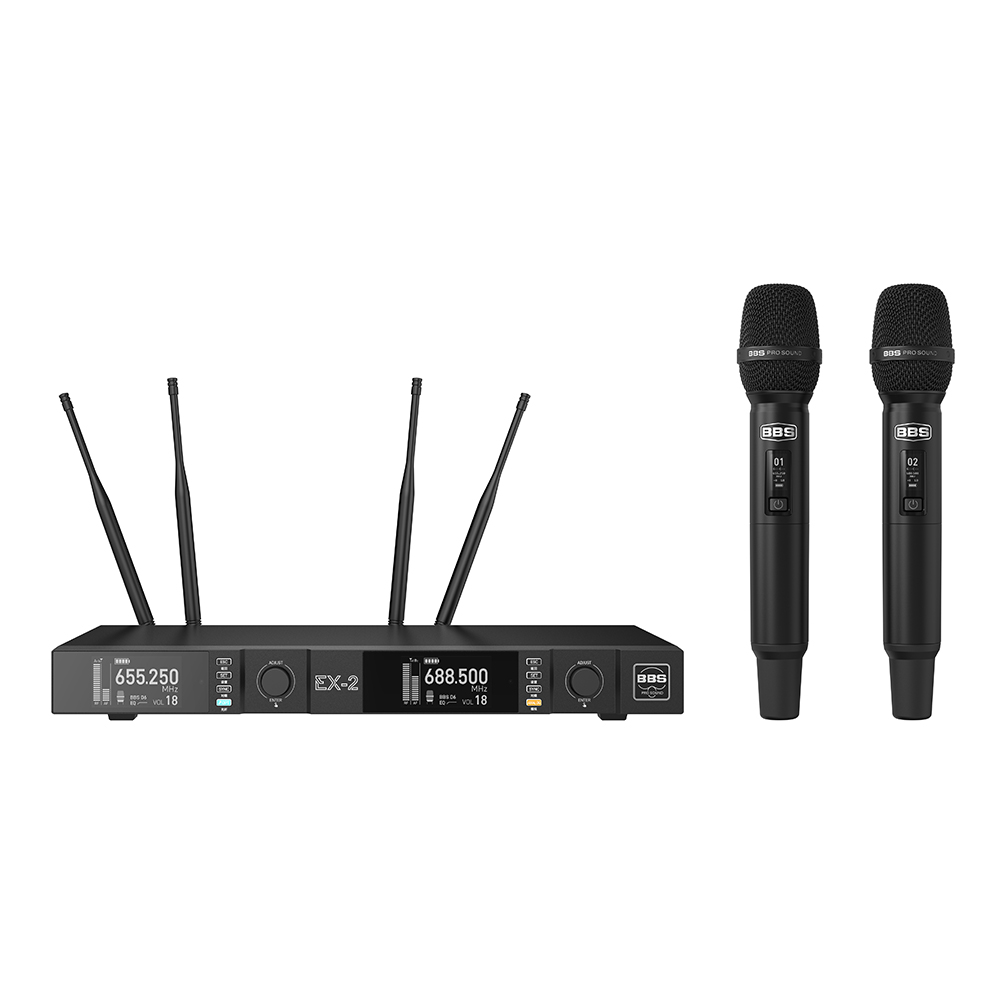

EX-2 MICROPHONE
Frequency range: 651.000MHz-697.000MHz
Channels: 164 CH
Frequency space: 250KHz
Bandwidth: 46MHz
S/N Ratio: ≥50dB (national standard method), ≥102dB (A-weighted, conventional test method)
Effective work distance: > 100 meters (Without obstruction)
Receiver
Display mode: 2.69 “TFT color screen
Power supply: AC 110~220V – 50/60Hz
Analog audio output: XLR balanced socket+ unbalanced TRS 6.35mm socket
Digital audio output: OPT
Audio mode: Built-in multiple preset audio optimization curves
Built-in module: 4 groups of pre-allocated frequency modules, each group has 16 channels
Control port: Parallel RJ45 port, supporting RS485 agreement
Independent ID setting: You can set 50 different ids
Balance adjustment: Built-in high-low pass filter that can be independently controlled
Transmitter
Power: two levels, high and low power
Frequency stability: ±5KHz
Display mode: 0.96 “TFT color screen Transmit gain：Adjustment 7 levels Microphone Cartridge: Dynamic Battery：2 *AA Batteries
